Dask¶

Dask can be deployed on distributed infrastructure, such as an HPC system or a cloud computing system. There is a growing ecosystem of Dask deployment projects that facilitate easy deployment and scaling of Dask clusters on a wide variety of computing systems.

Within LEAP JupyterHub, we can use the dask-gateway to create dask clusters.

Introduction to Dask Gateway¶

Dask Gateway helps you manage Dask clusters for multiple users in a scalable, secure, and resource-efficient way. It's designed to work well in environments like JupyterHub or shared cloud infrastructure.

Rather than manually setting up a Dask cluster, Dask Gateway automates the process, letting you spin up resources on-demand without worrying about underlying infrastructure details.

When to use Dask Gateway:¶

Dask Gateway is useful when:

You need to run Dask jobs on a shared cluster.
You want to scale your computation dynamically, particularly in cloud or HPC environments.
You prefer not to manage the underlying infrastructure manually (e.g., node management, worker allocation).

Quick start (Notebook)¶

This sequence connects to Dask Gateway, starts a cluster, attaches a client, and scales workers as needed.

from dask_gateway import Gateway

# Connect to Gateway (preconfigured on the Hub)
gateway = Gateway()

# Inspect available cluster options (cores, memory, image, env vars)
gateway.cluster_options()

# Create a cluster
cluster = gateway.new_cluster()
cluster

# Connect a Dask client
client = cluster.get_client()
client

# Scale on demand (fixed size or adaptively)
cluster.scale(4)  # fixed size: set an explicit number of workers

cluster.adapt(
    minimum=1, maximum=20
)  # adaptively: autoscale between a min/max based on workload

# Link to the Dask dashboard for task graphs, memory, and progress
client.dashboard_link

!!! tip:

The **Dask dashboard** visualizes work in real time (graphs, progress bars, worker memory). It's the best place to debug performance.

Example: dask.array workload¶

This example shows how Dask splits a big array into chunks, builds a task graph, and only runs it when asked (lazy computation).

import dask.array as da

# 20k x 20k random array, chunked into 1000 x 1000 tiles
# Chunking controls parallelism and memory per task
x = da.random.random((20_000, 20_000), chunks=(1_000, 1_000))
y = x + x.T
z = y[::2, 5000:].mean(axis=1)

# Compute once workers are ready (executes lazily until this line)
z.compute()

If the runtime is too long, then we can scale up:

cluster.scale(8)  # add workers, then recompute
z.compute()

Example: xarray + Zarr (GCS)¶

This example opens a remote Zarr dataset stored in Google Cloud Storage (GCS), builds a lazy analysis pipeline, and then executes it on a Dask cluster.

import xarray as xr

# Zarr example on GCS
ds = xr.open_dataset(
    "gs://cmip6/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/highresSST-present/r1i1p1f1/3hr/tas/gn/v20170831/",
    engine="zarr",
    chunks={},
)

# Inspect and adjust chunking if needed
ds.chunks
ds = ds.chunk({"time": 240, "lat": 256, "lon": 256})

# Build a lazy pipeline: Area-weighted global mean, then a rolling mean along time
weights = np.cos(np.deg2rad(ds.lat))
tas_global = ds.tas.weighted(weights).mean(("lat", "lon"))
tas_rolled = tas_global.rolling(time=24, center=True, min_periods=12).mean()

# Trigger computation on the cluster
result = tas_rolled.compute()
print(result)

Dask / Xarray tips and tricks¶

The Xarray docs have a page on Xarray + dask best practices here

Correct chunk sizes¶

When working with Xarray and Zarr, you should aim for data chunk sizes around ~100 MB (rule of thumb: ~50–250 MB). Chunk sizes that are too small can overwhelm the Dask scheduler, while chunks that are too large can cause memory issues.

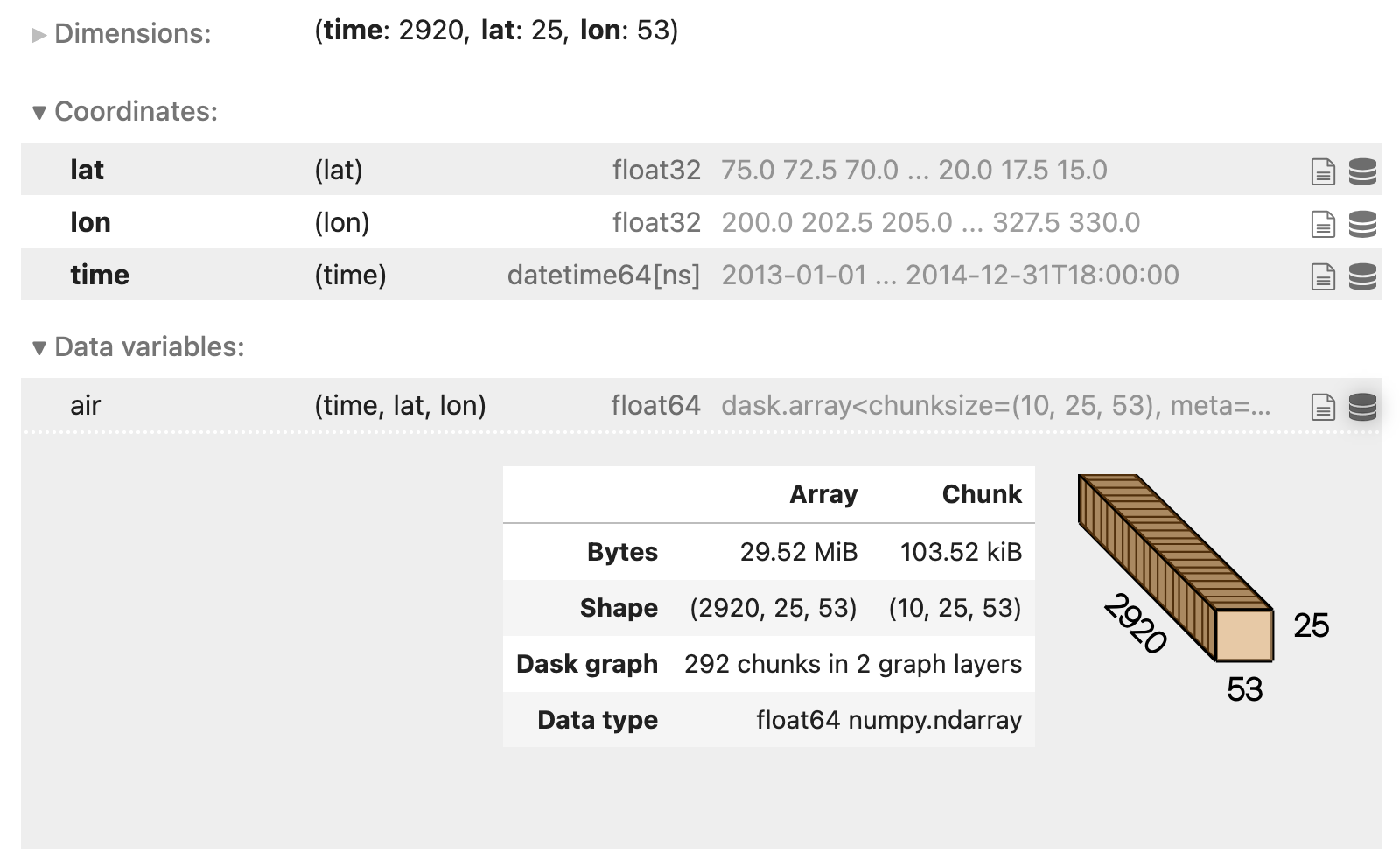

You can examine the chunk size and shape by viewing the HTML repr of an Xarray dataset in a Jupyter Notebook. If you click on the right-most database logo you should get a drop-down menu that shows the chunking information.

chunking

Good chunking balances memory, overhead, and parallelism:

Aim for ~100 MB per chunk of array data (rule of thumb ~50–250 MB).
Align chunks with the access pattern (e.g., chunk along time for time-wise operations).
Rechunk explicitly when the store’s defaults aren’t ideal.

Delay computation until write¶

Xarray is great at lazy computation; it’s usually possible to run multiple operations before any computation is done. Keep everything lazy (not eager!) until you finish your processing and write your data. For example, a to_zarr() call will trigger the computation. This can generally be accomplished by not calling .load(), .persist(), or .compute() during intermediate steps.

Use the Dask dashboard¶

If you are using the Dask distributed scheduler you can view the Dask dashboard in a browser. This allows you to see memory usage, task progression, and a bunch of other metrics live.

# Local / standalone scheduler:
from distributed import Client

client = Client()
client

On Dask Gateway (recommended on the Hub), you’ll typically do:

# Using Gateway:
client = cluster.get_client()
client.dashboard_link

Cleaning up¶

When, make sure to shut down your Dask cluster (scheduler + workers) so the compute nodes are released back to the shared Gateway pool. This stops your resource usage and frees capacity for others. Use the following code snippet to do this:

client.close()
cluster.shutdown()

Common issues and fixes¶

Issue	Quick fixes
Workers killed / OOM	Increase worker memory; reduce chunk sizes; avoid creating huge numbers of tiny tasks; consider `ds = ds.chunk({...})` with larger chunks per task.
Slow progress	Scale up workers with `cluster.scale(...)` or use `cluster.adapt(minimum=..., maximum=...)`; rechunk for bigger tasks; use `persist()` on reused intermediates.
Dataset not found / auth errors	Verify the bucket/path; check credentials and permissions; confirm whether code is running on the Hub vs. local and that the selected interpreter/kernel matches.
Dashboard not loading	Recreate the client/cluster, then reopen `client.dashboard_link`; ensure the dashboard URL isn’t blocked by network/firewall settings.

Other ways to run Dask¶

While Dask is a great tool for scaling, there are other ways to run Dask on distributed systems.

HPC (job schedulers): https://jobqueue.dask.org/
Dask MPI: https://mpi.dask.org/
Managed cloud: https://coiled.io/?utm_source=chatgpt.com
Kubernetes: https://kubernetes.dask.org/en/latest/?utm_source=chatgpt.com
Cloud provider SDKs: https://cloudprovider.dask.org/en/latest/?utm_source=chatgpt.com
